X-ray Inspection & Analysis Services
High-Resolution X-Ray Inspection Services for Electronics Manufacturing, Failure Analysis, Counterfeit Detection, and Quality Assurance
Ensuring the integrity of today’s most advanced electronic components requires precision, reliability, and innovation. Our X-ray Inspection & Analysis Services provide non-destructive, ultra-high-resolution imaging that reveals hidden defects in PCBs, solder joints, BGAs, QFNs, wire bonds, and other critical assemblies.
With cutting-edge microfocus X-ray technology and multi-axis motion control, we deliver unmatched accuracy in detecting voids, cracks, bridging, and counterfeit parts. Whether for quality assurance, process optimization, or failure analysis, our services help manufacturers maintain compliance, reduce risk, and achieve the highest standards of product reliability.
From electronic components, aerospace and defense to medical devices, we partner with industries where performance and safety cannot be compromised.
Applications include:
- Quality Assurance Testing of Electronic Assemblies including BGAs, Micro-BGAs, PCBs, Flip Chips and SMT
- Medical Device Inspection
- Forensic Evidence Evaluation Accident Reconstruction and Incident Analysis
Our X-ray systems can identify several defects in both electronic assembly and medical device components.
Electronic Component defect list

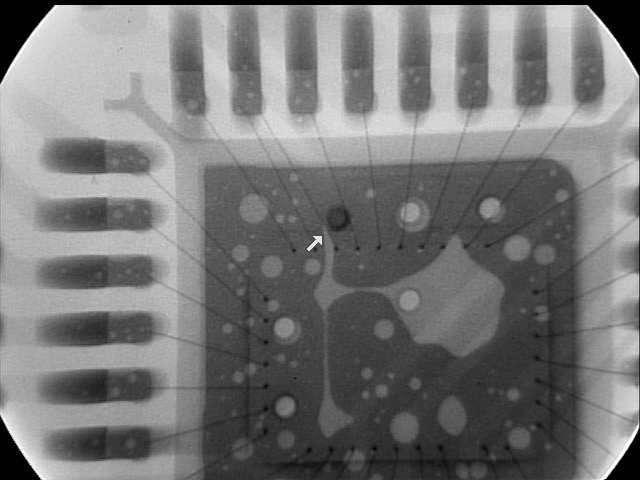

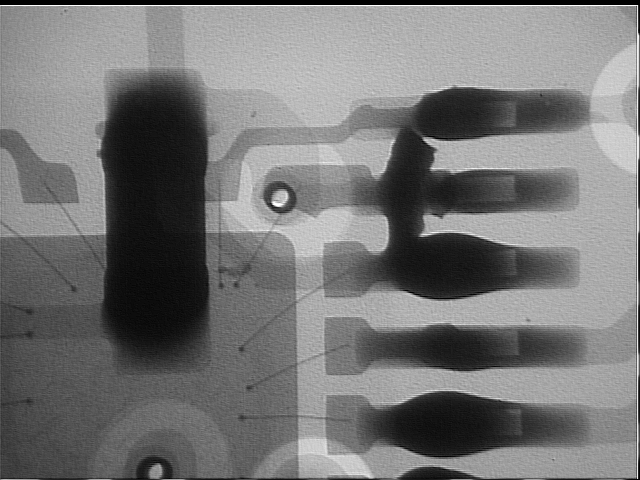

Solder Joint & BGA / QFN Defects
Voids inside solder joints
Insufficient solder
Excess solder / solder balling
Cold solder joints
Head-in-pillow defects (BGA-specific)
Bridging between pads or balls
Misaligned or shifted components
Open joints / incomplete reflow
Component & Package Defects

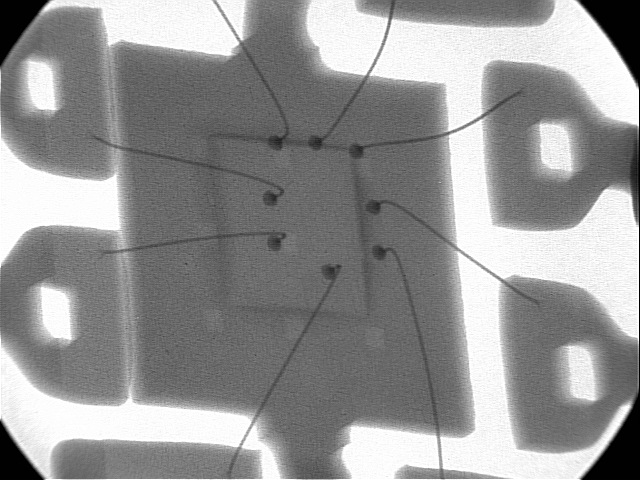

Wire bond breaks or improper wire bonding
Popcorning damage from moisture exposure

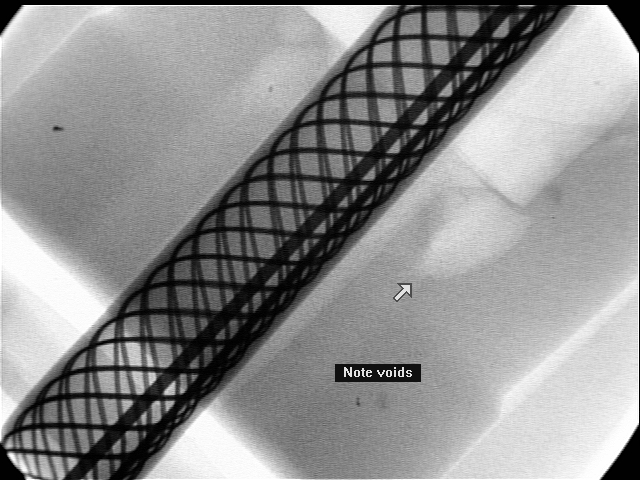

Medical Device defect List

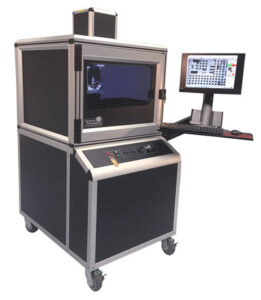

Rapid Turnaround X-Ray Inspection Services with our JewelBoxes 70-T and 100-T
Our Applications Laboratory is equipped with the JewelBox-70T and JewelBox-100T X-ray inspection systems, ensuring the most precise analysis available. These industry-leading systems meet the highest standards in X-ray imaging and analysis, providing unmatched accuracy for electronic components, medical devices, and advanced materials.
